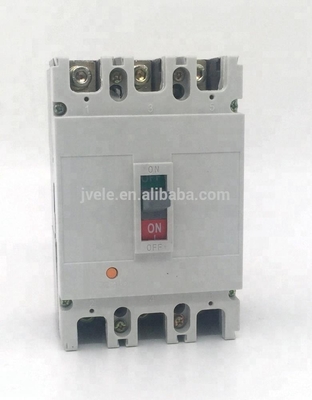

China Supplier For TMAX S1 690V 125A 250A 3P 4P Moulded Case Circuit Breaker MCCB
JVM3T TMAX series moulded case breaker applies to breaking and making operation in AC 50/60Hz, rated operation voltage 690V or less and rated current up to 1600A circuit. It can distribute electric energy in circuit, work as the overload of wiring and power supply equipment, or as the protector of short circuit and under voltage.
| Products Name | JVM3T TMAX Moulded case circuit breaker (MCCB) | ||||||
| Advantages | compact, small size, high short-circuit breaking capacity,no craing-over | ||||||
| Suitable AC | 50HZ | ||||||
| Rated insulation Voltage | 690V | ||||||
| Rated working voltage | 660V(690V) or below | ||||||
| Rated Current | 20A~1600A | ||||||
| DC | 250V or below | ||||||
| Standard | IEC60947-2,GB-14048.2,GB-14048.4 | ||||||
| Installation | mounted verticalyy or cross-loaded | ||||||
| Breaking capacity rating | E , S ,M , H, L | ||||||
| Pole No. | 1P/2P/3P/4P | ||||||
*the installation altitude less than 2000m
*the surrounding temperature from -5°C ~ +40°C
*in the non-explosive condition . or without adequate erosion and destruction of gas and dust conductive area .
*without rain and snow invade
*pollution level 3
