Rated insuiating voltage : 750v
Rated operating voltage : 690 and below
Ultimate short breaking capacity : 25KA~150KA
Servies short circuit breaking capacity : 25KA~150KA
We are a large scale manufacturer of low voltage electric appliance, cable accessory, electric accessory.

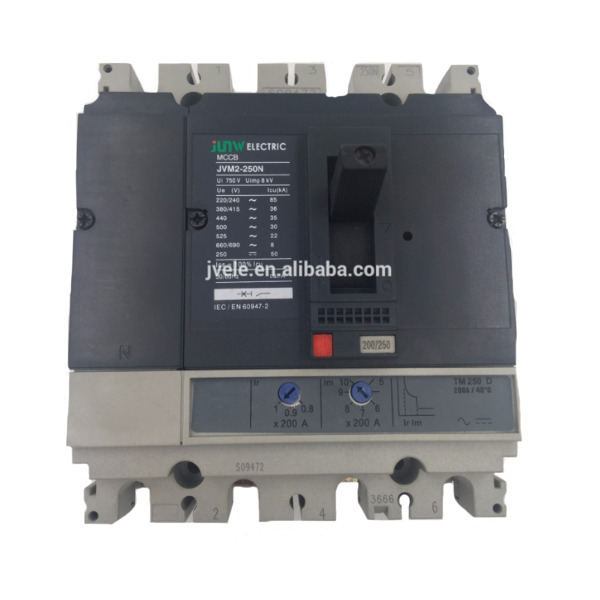

JVM2 Breaker are suitable in AC 50Hz, 250/440V circuit with overload and earth leakage protection. The rated current is adjustable from 25A up to 1600A. User can select suitable current to better protection against overload and short circuit. The products comply with NFC 61450.
|
Type |
Rated current |
Note |
|
JVM2-100 |
12.5,16,20,25,32,40,50,63,80,100 |
T adjustable(0.8~1ln) |
|
JVM2-160 |
16,20,25,32,40,50,63,8/0,100,125,160 |
M adjustable(5~10ln) |
|
JVM2-250 |
160,180,200,225,250 |
|
|
JVM2-400 |
315,350,400 |
|
|
JVM2-630 |
400,500,630 |
|
|
JVM2-1250 |
800,1000,1250 |
T adjustable (0.8~1ln) |
|
JVM2-1600 |
1000,1250,1600 |
M fixed |
