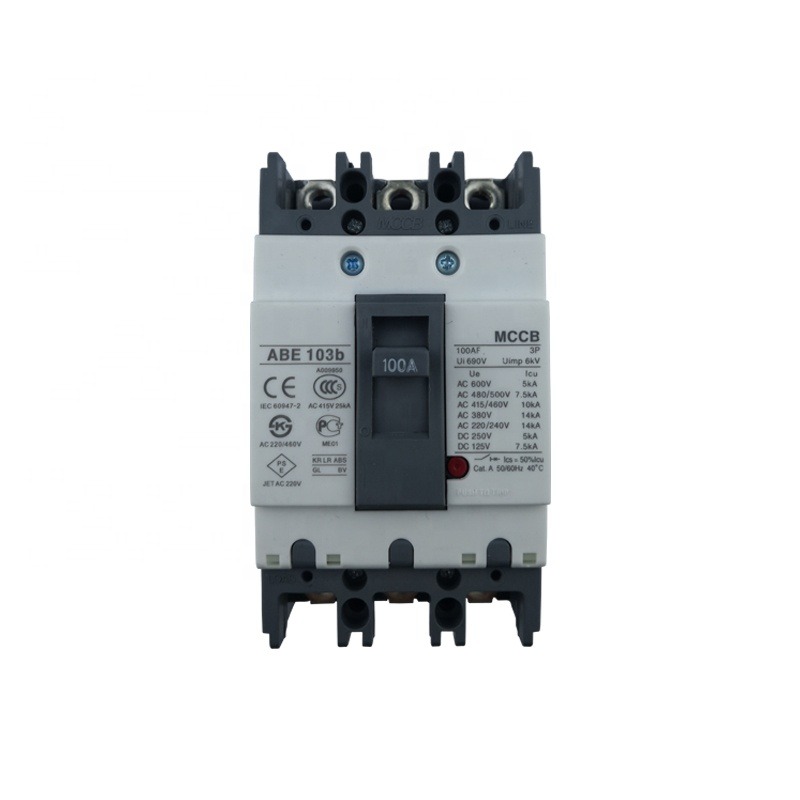

Our MCCB circuit breaker schneider mccb ABE 103b 3P molded case circuit breaker (LG MCCB circuit breaker) is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. It features normal structure reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit. It complies with the standard of IEC 60947-2. mccb smart breaker mccb mcb elcb price list mccb schneider mccb 300 amp circuit breaker mcb and mccb
1. Application
MCCB circuit breaker schneider mccb ABE 103b 3P molded case circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. It’s a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under-voltage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance. The types are ABE 52b, 53b, 54b, 102b, 103b, 104b, 203b, 403b etc.
2. Features:
A. We use molded material with excellent flame-retardant, good insulation performance and high temperature resistance characters.
B. We adopt thick galvanized sheet copper, it avoids the defects of conductive thread easily slip teeth.
C.The new design structure is aesthetic and compact size, good appearance and effective.
D. Advanced processing technology.
3. Technical Data:
A. Product name: MCCB (Molded Case Circuit Breaker)
B. Type: ABE 102b
C. Rated current: 6-100A
D. Number of poles: 2P
tomzn,schneider electric,circuit breaker,ls mccb,schneider electric in china,terasaki circuit breaker,mccb,schneider electrical mccb circuit breaker,electric breaker usa schneider,mccb hyundai hgm,1000a 4p circuit breaker,chint breaker 3p,schneider nsx400n motorized breaker 3p 400a,mccb hgm,dc circuit breaker,disjoncteur schneider 16a dc,schneider electric price list,shunt trip circuit breaker,mec circuit breaker,mccb dc,schneider elcb,mitsubishi breaker,chint mccb,250amp mccb,mcb schneider,schneider,schneider electric,price list mccb schneider,tomzn,schneider,schneider circuit breaker,schneider electric in china,schneider mcb,schneider mccb,schneider electrical mccb circuit breaker,mcb schneider,schneider electrical mccb,mec mccb,schneider breaker,merlin gerin,circuit breakers siemens,ls mccb,belkin,mccb with shunt trip coil,schneider 125a 4p mccb,terasaki circuit breaker,schneider mcb circuit breaker,250amp mccb,mccb,standard mccb ratings,schneider mccb 400a,breaker schneider,siemens circuit breakers,mccb schneider,circuit breaker schneider,metasol circuit breaker,schneider mccb 250a,schneider mccb 250a,merlin gerin circuit breaker,chint circuit breaker,chint mccb,lock mccb,mccb symbol electrical,circuit breaker,schneider motor protective circuit breaker,mitsubishi breaker,schneider elcb,mcb and mccb image,chint breaker,schneider breakers prices,breaker trip coil,ls circuit breaker,tpn mccb,mccb symbol,mccb dc,schneider breaker dc,1000 amp circuit breaker mccb,smart breaker mccb mcb elcb,schneider electric mcb circuit breaker c16,elcb schneider,100a tpn mccb,schneider electric elcb,schneider c32 mcb breaker,m611 motor protection circuit breaker,andeli circuit breaker,siemens mccb,schneider elcb circuit breaker,disjoncteur schneider 125a,dc 2p 600v circuit breaker,schneider electric circuit breaker,terasaki mccb,63 amp mccb,metasol mccb,molded case circuit breaker,60amp circuit breaker mccb,schneider 250a mccb,terasaki breaker,mccb 150 amp circuit breaker,breaker 2p schneider,mitsubishi mccb,disjoncteur schneider,schneider mccb 4p 100a,schneider interrupteur electric,mccb price list,integrated circuit breaker,schneider mechanical interlock mccb,schneider c20 mcb breaker,schneider electric miniature circuit breaker,mccb 300 amp circuit breaker,schneider electric xld breaker circuit
| Type | Poles | Rated Current In (A) | Ultimate Short Circuit Breaking Capacity(kA), Icu | Uimp(kV) Rated Impulse Withstand Voltage | |||||||
| Ue(DC) | Ue(AC 50/60Hz) | Ui(V) | |||||||||
| 125V | 250V | 220/240V | 380V | 415/460V | 480/500V | 600V | |||||
| ABE 52b | 2P | 10,15,20,30,40,50 | 5 | 2.5 | 10 | 7.5 | 5 | 2.5 | 2.5 | 690 | 6 |
| ABE 53b | 3P | 10,15,20,30,40,50 | 5 | 2.5 | 10 | 7.5 | 5 | 2.5 | 2.5 | 690 | 6 |
| ABE 54b | 4P | 10,15,20,30,40,50 | 5 | 2.5 | 10 | 7.5 | 5 | 2.5 | 2.5 | 690 | 6 |
| ABE 102b | 2P | 10,15,20,30,40,50, 60,75,100 | 10 | 5 | 25 | 14 | 10 | 7.5 | 5 | 690 | 6 |
| ABE 103b | 3P | 10,15,20,30,40,50, 60,75,100 | 10 | 5 | 25 | 14 | 10 | 7.5 | 5 | 690 | 6 |
| ABE 104b | 4P | 10,15,20,30,40,50, 60,75,100 | 10 | 5 | 25 | 14 | 10 | 7.5 | 5 | 690 | 6 |
| ABE 203b | 3P | 100,125,150,175,200,225,250 | 15 | 10 | 35 | 18 | 18 | 10 | 7.5 | 690 | 6 |
| ABE 403b | 3P | 250,300,350,400 | 20 | 10 | 35 | 30 | 25 | 18 | 18 | 690 | 6 |
1. Working Conditions:
A. Ambient air temperature: -40oC~+125C, the highest monthly mean temperature should not exceed +35oC;
B. Altitude for installing place should not exceed 2000m;
C. Atmospheric relative humidity: + 40 ℃ not more than 50%, the highest humidity is 90%, air relative humidity of 85% or less;
D. Pollution level: level 2;
2. Quality Assurance of Our Circuit Breakers:
A. We use molded material with excellent flame-retardant, good insulation performance and high temperature resistance characters.
B. We adopt thick galvanized sheet copper, it avoids the defects of conductive thread easily slip teeth.
C. The new design structure is aesthetic and compact size, good appearance and effective.
D. High sensitivity, long lifetime, good reliability and stability.
E. 100% Inspection before shipment.
3. Why choose us:
A. We are reliable Alibaba Gold Supplier.
B. We are leading manufacturer in micro switches for more than 10 years’ experience.
C. Rich experience in Global market, export to more than 50 countries.
D. 100% QC inspection before shipment.
E. Keep research and development the latest technology.
F. Reply within 24 hours.
G. After sale service: Professional technical support.
H. Customized design: We can produce according to your request.
