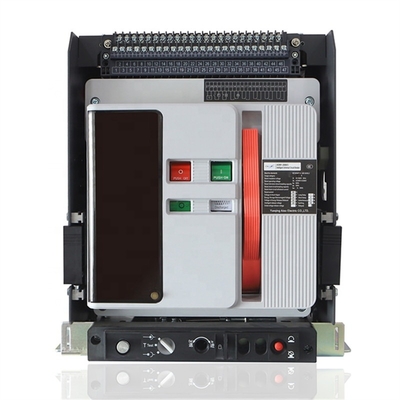

New Design 2000Amp 3P Drawer Type Air Circuit Breaker
Do Better Performances in Demanding Duties
Feature of Intelligent Drawer Air Circuit Breaker(ACB) air circuit breaker/ acb 3p 2000a
1. Rated AC current: 630A-6300A
2. Short-circuit breaking capacity: 80KA-120KA
3. Rated Voltage: under AC690V
4. Standards: IEC60947-2, GB14048.2
Categories of Intelligent Drawer Air Circuit Breaker(ACB) air circuit breaker/ acb 3p 2000a
1. Two Types: draw-out type and fixed type
2. Number of poles: 3 pole and 4 pole
3. Operation type: manual operation, auto operation
4. Trip types:*Intelligent controller
*under voltage instant ( or time delay type) trip
*shunt trip
5.Intelligent controller categories:*L type(basic type),
*M type( Standard type)
*H type ( communication type)
|
Frame size rated current inm(A) |
Rated current InA |
Rated limit short-circuit breaking capacity lcu(kA) |
Rated operating short-circuit breaking capacity lcu(kA) |
||
| 400v | 690v | 400v | 690v | ||
| 2000 | 630 | 80 | 50 | 50 | 40 |
| 800 | |||||
| 1000 | |||||
| 1250 | |||||
| 1600 | |||||
| 2000 | |||||
