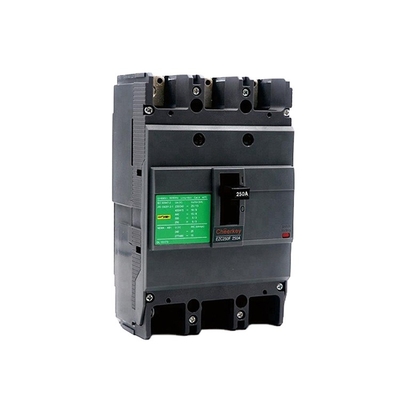

| Model | SEZC-100 | SEZC-250 | |
| Number of Poles | 1P,2P,3P,4P | 3P,4P | |
| Control | Manual | toggle handle, direct or extended rotary handle | |
| Connections | Fixed | Front connection/rear connection | |
| Plug-in | Front connection/rear connection | ||
| The electrical characteristics as per ICE 60947-2 and EN 60947-2 | |||
| Rated Current (A) | In | 15-100 | 100-250 |
| Rated Insulation Voltage (V) | Ui | 690 | 690 |
| Rated Impulse Withstand Volt(kV) | Uimp | 6 | 6 |
| Rated Operation Voltage (V) | Ue | AC50/60Hz 440V | |
| Breaking Capacity Levels | F H | E M | |
| Isolation Function | / | ||
| Utilization Category | A | ||
| Endurance (C-O cycles) | Mechanical | 10000 | 8500 |
| Electrical 440V | 2000 | 1500 | |
| Release | Thermal magnetic |
| Overload Protection | - |
| Short circuit Protection | - |
| Earth Leakage Protection | - |
| Auxiliary contact AX and Alarm contact AL | - |
| AX+AL Combination | - |
| SHT Shunt Trip | 24V, 220V, 380V |
| UVR Shunt Coil | - |
| Accessories | Terminal extensions |
| Terminal shields | |
| Alternate septum |
| 1P | 130 x 25 x 81 | |
| 2P | 130 x 50 x 81 | |
| 3P | 130 x 75 x 81 | 165 x 105 x 85.5 |
| 4P | 130 x 100 x 81 | 165 x 140 x 85.5 |
Q1:Can I have a sample order?
A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2:What about the lead time?
A2:Sample needed 3-5 days, mass production time needed 1-2 weeks.
Q3:Do you have any MOQ limit?
A3:1pc for sample checking available.
Q4:How do you ship the goods and how long does it take to arrive?
A4:We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping for option.
Q5:Is it OK to print my logo on modified sine wave inverter?
A5:Yes. Please inform us formally before our production and confirm the design firstly based on the sample.
Q6:Do you offer quarantee for the products?
A6:Yes, we offer 18 months warranty.
Q7:Can I get one for sample?
A7:Yes, we accept sample order or trial order for testing first.
Q8:What's the price and MOQ??
A8:NO MOQ. Please just send us inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price.
Q9:What's you delivery time?
A9:It depends on your quantity, usually 1-3 days for sample order, but for batch order, it according to theactual situation.
Q10:How about your payment and shipment?
A10:Payment: We accept T/T, Western Union, Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.express; for batch order, by sea or by air.
Q11:How about your warranty?
A11:We provide 1.5 and 2 years warranty for different products and whole life technical support.
