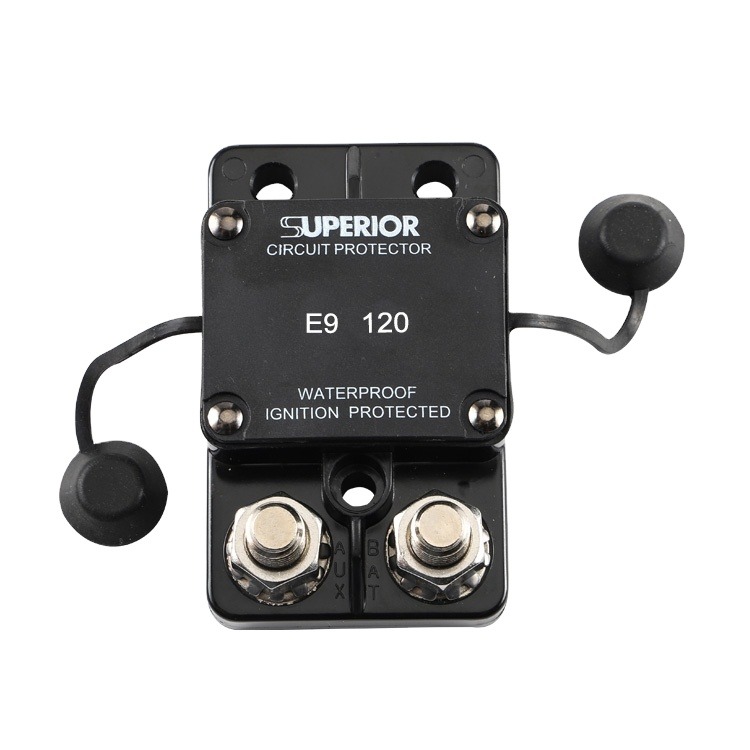

| Part Number | E9A-120A |
| Description | Hi-Amp Circuit Breaker 3/8" Stainless Steel Studs, Parallel Easy Studs Surface Mount Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system. |
| Family | Thermal Circuit Breakers |
| Category | E9 |
| Series | E9A-120A |
| Voltage | up to 72Vdc* |
| Rated Current | 120A |
| Mounting | Parallel Studs Easy Surface Mount |
| Reset Type | T1, Auto Reset |
| Operating Temperature | -32ºC (-25ºF) to 82ºC (180ºF) |
| Interrupt Capacity | 2,500A @ 14Vdc (25-200A) 1,500A @ 48Vdc (25-200A) 1,500A @ 14Vdc (225A-300A) * Consult Factory |
| Dimension | Length: 80 Width: 48.5 Height: 26.8 Unit: mm |
| Weight | 136 g |
| RoHS | Y |
| Standard Pack | 100 |
| Regulatory Sepcification | Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11; Ignition Protected: SAE J1171; Endurance: SAE J1625; SAE J553 Dielectric Strength: Dust and Waterproof: IP67 Shock, Vibration, Corrosion, Humidity: Mil-STD-202 |
| HS Code | 85362000 |
| Termination | 3/8" Stainless Steel Studs |
| Body | 94V0 thermoset plastic |
| Storage Temperature | -34ºC (-30ºF) to 149ºC (300ºF) |
| Body Color | Black |
| Cover Color | Black |
Select a low amp or high amp thermal circuit breaker for your commercial
applications, transportation equipment, marine, medical, and other power
supplies:
1.Circuit breaker can do is protect the circuit from a high current short circuit.
2.Through its thermal trip it can protect the circuit from overload conditions.
A circuit breaker will trip if too large a draw or current flow occurs across a
thermal shunt inside.
3.Easy for mounting.
4.Trip-off time is customizing and adjustable according to customers' demands.
5.The design allows the thermal circuit breaker to be extremely cost-effective while
remaining durable and reliable.
[FAQ]
>>>Q1: I’m interested in your products, do you have them in stock?
A: We many items in different amps. Please ask our customer service to check our inventory status.
We usually reply within 12 hours.
>>>Q2: If I’m interested in your product, but I’m not sure if I can use it, can I get samples from you?
A: Yes, we do take sample order! We also can help to suggest items or provide our cross references.
>>>Q3: If I order products from you, how soon can I receive them?
A: It depends on which item do you need, if we have it in stock, we can ship it right away.
It usually takes about 3-5 days of delivery.
>>>Q4: What is your lead time?
A: Please ask our customer service, and tell us which items do you need.
For standard MOQ, the production lead time is about 3-4 weeks.
>>>Q5: What is your packaging style?
A: For standard MOQ, we offer carton bulk packaging.
Please let us know if you have special requests.
